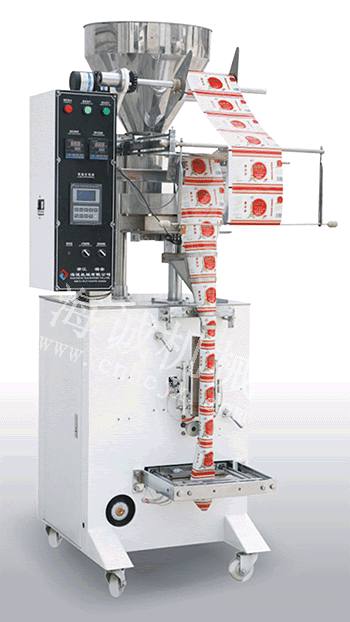

DXD-400A型顆粒包裝機（碳鋼）

點擊圖片查看大圖

詳細信息

用途：Use

適合于瓜子、巧克力、小餅干、花生、小米、種子、開心果、咖啡、青豆、茶葉、白砂糖、雞精、麥片、食鹽、干燥劑等顆粒狀物料自動化包裝。

Suitable for automatic packaging particle materials like all kinds of nuts, chocolate,biscuits, peanuts,grain, seeds,pistachio,coffee,lima beans,tea,sugar,chicken essence,oat cereals,salt and desiccant.

特點：Features

1.設計合理，結構簡潔。
2.單片機、步進電機控制，袋長設定方便，準確。
3.調速簡單、快捷。
4.選配裝置：連包控制裝置、充氣裝置(氣源自備)。

This is suitable for automatic packaging particle materials such as
sweets, peanuts, nuts seeds, grain, coffee and tea.
Reasonable design, simple structure.
Controlled by single-chip computer, stepping motor, convenient
and correct bag length setting.
Simple, fast speed regulation.
Optional:continuous-packaging control device, gas-filled device
(air source supplied by users).

主要技術參數 Main Technical parameter

包裝速度	Packing speed	15-60bags/min
制袋尺寸	Bag-making size	(L)60-250mm (W)60-180mm
計量范圍	Filling range	50-850ml
包裝膜寬	Film width	120-400mm
包裝材料	Packing materials	OPP/CPP PET/PE 等復合材料
薄膜厚度	Film thickness	0.04-0.08mm
膜卷直徑	Film roll diameter	Max. 320mm
電源功率	Power supply	AC220V 50Hz 2.5kw
機器尺寸	Machine dimensions	(L)1200×(W)900×(H)2150mm
整機重量	Machine weight	300kg
