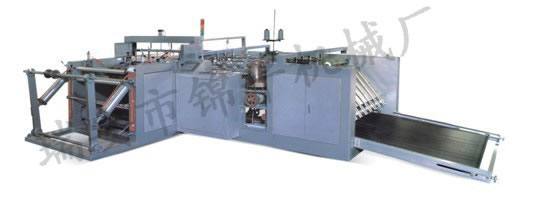

JQ-SCD-1200×800編織袋自動切縫機
Automatic PP Woven Bag Cutting And Sewing Machine
特點Features
1、自動完成編織袋簡布的定長熱切割和底部縫紉，節省勞力。
2、采用伺服電機驅動，光碼器計長，精確控制袋長。
3、熱切割后袋子不粘連，易開口。
4、氣動上卷，操作方便省力。
5、雙折邊、單折靈活運用。
1. It can automatically accomplish the normal-length cutting as well as the
hemming for the woven cloth in roll, which saves labors forces.
2. It adopts the servo motor to drive and the optical code meter to count the
length, which precisely controls the length of bags.
3. After the heating cutting, the plackets of bags are easy to open, not conglutinated.
4. By pneumatic up-coiling, the operation is so convenient.
5. Double hem, single fold use agility.
主要技術參數Main technical parameters
最大布卷直徑 Max. Diameter of cloth roller(mm) 1200mm
最大裁切寬度 Max. Cutting width(mm) 800mm
裁切長度 Cutting length(mm) 600-1200mm
裁切精度 Cutting precision(mm) ±4mm
折疊寬度 Folding width(mm) 20-30mm
生產能力 Production capacity(pcs/m) 10-45只/分
總功率 Gross power(kw) 6kw
重量 weight(kg) 約2500kg
外形尺寸 Overall Dimensions(LWH)(mm) 6800x1800x1200 |
