膜寬（毫米）  Film width (mm)	40~240
制袋尺寸（毫米）長*寬  Bag size (mm) length * width	120*80
卷材直徑（毫米）  Roll diameter (mm)	≤300
包裝速度（袋/分鐘）  The packing speed (bags / minute)	35~50
電源總功率（千瓦）  Total power (kw)	1.5 kW 220/380 V±10% 50 Hz
機器尺寸（厘米）長*寬*高  Machine size (CM) length * width * height	65*65*166
整機重量（千克）  Machine weight (Kg)	≤100

適用范圍：
Scope of application:
本機適用于食品、醫藥、化妝品等液體物料袋包裝。

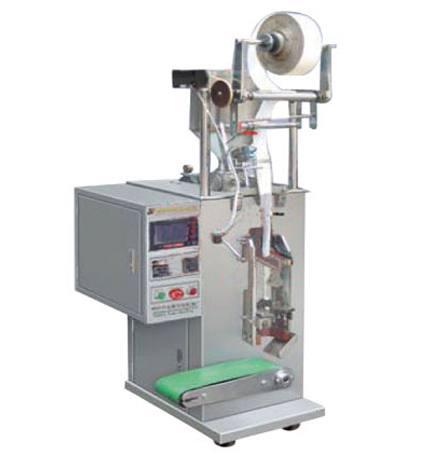

This machine is suitable for food, medicine, cosmetics and other liquid materials bag packaging.
功能特點：
Function characteristics:
1、加料、制袋、充填、封口、裁切全自動完成
2、包裝速度、制袋長度可無極調整；包裝容量可在1~50ml內任意調節，無需更換零件
3、多路熱封自動控制，可三邊封也可四邊封，且可點斷；光電跟蹤同步可靠，可獲得完整商標圖案。
1, feeding, bag making, filling, sealing, cutting automatic completion
2, packaging speed, bag length can be stepless adjustment; packing capacity can be adjusted within 1~50ml, without changing any parts
3, Automatic control of multi heat sealing, three side seal can be sealed edges,and point break; photoelectric tracking synchronization and reliable, may obtain the complete logo.
包裝材料：
Packaging.
紙/聚乙烯、玻璃紙/聚乙烯、聚酯/鍍鋁/聚乙烯、聚酯/聚丙烯、BQPP薄膜、尼龍/聚乙烯、茶葉過濾紙等熱封復合材料。

Paper / PE, Pt / PE, PET / Plated Al / PE, PET / PP, BQPP film, nylon / polyethylene, tea filter paper heat sealing composite material.
